Frangi Vesselness Filter — Interactive Demo

Upload an angiography image to see the improved Frangi vesselness filter in action: local intensity normalization (S3) and weighted dominant scale filtering. Runs entirely in your browser — no data leaves your machine.
View on GitHub

🖼

Drop an image here or click to upload

Sigma min 2 Sigma max 20 Beta 1 (blobness) 0.5 Beta 2 (structureness) 15 Vessel polarity Scale filter threshold 0.5

Example output: Standard Frangi vs Improved Pipeline

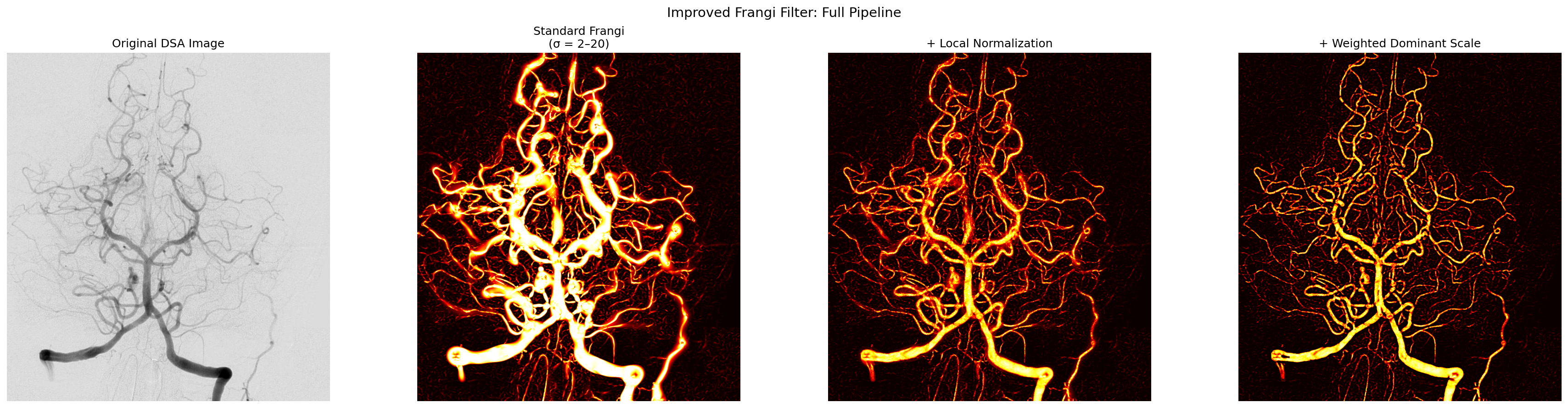

Comparison of standard Frangi filter, with local normalization, and with weighted dominant scale filtering

Left to right: Original DSA image, Standard Frangi, + Local Normalization (S3), + S3 + Weighted Dominant Scale filtering.
Upload your own image above to see these results interactively.
